Heat loss in heating systems often comes from pipework, valves and plant room components, not only from the building envelope. This guide helps planners, engineers and contractors assess heat-loss points, choose insulation thickness, install insulation correctly and document decisions for tender and handover.
Any surface that is warmer than the surrounding air will transfer heat to it. Pipework and fittings are no exception.
When heat is lost before it reaches the occupied space, the system may need to run longer or harder to deliver the same comfort. Over time, that can increase energy use and operating costs.
Insulation is a practical way to reduce heat loss, improve system efficiency and lower operating costs over time.
Start where the temperature difference to ambient is high, or where pipe runs are long. In many buildings, that means:

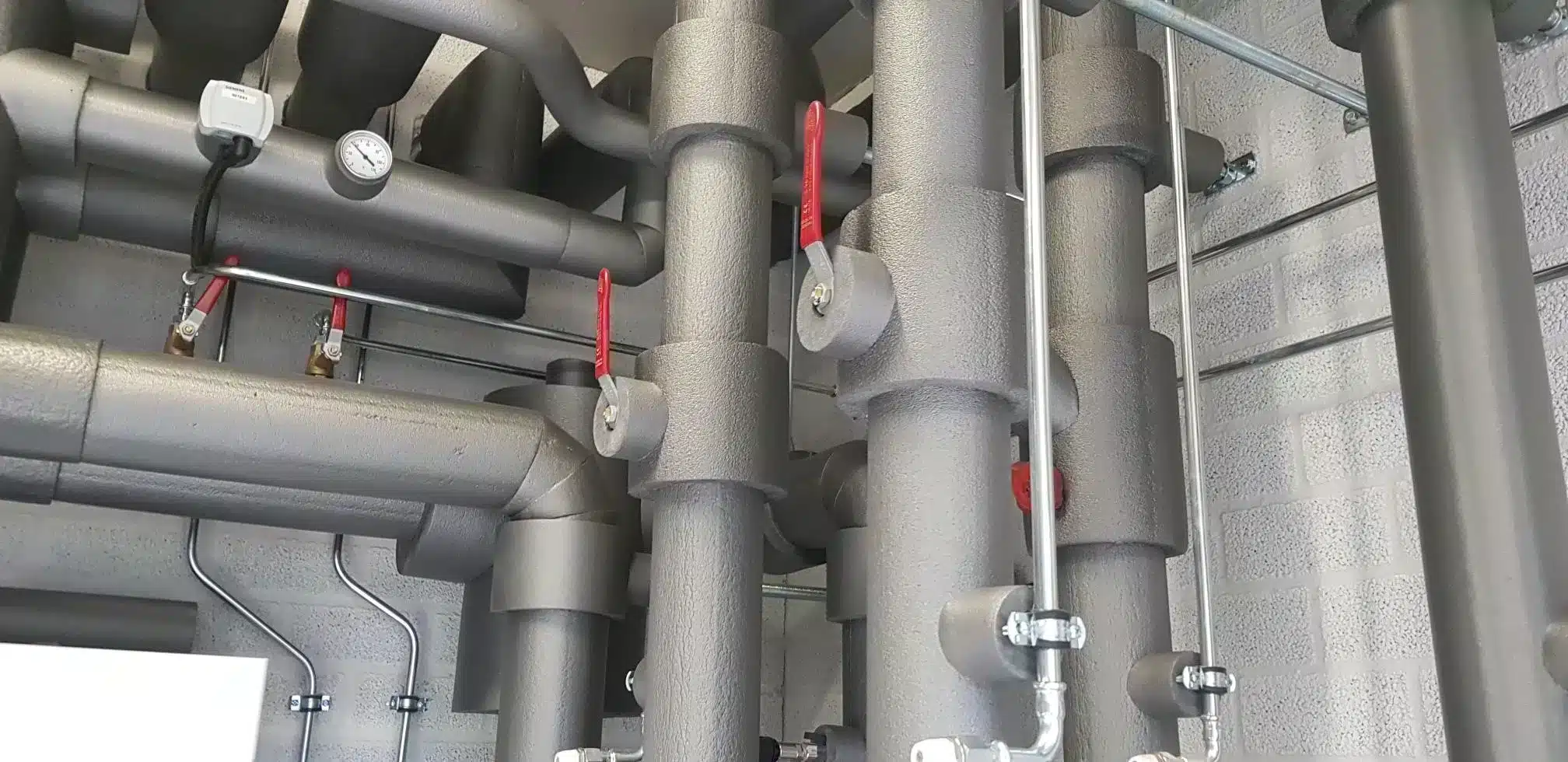

A common issue in refurbishment work is partial coverage. Straight pipe lengths may be insulated, while fittings, valves and branches remain exposed. These details can significantly affect thermal performance and should be included in the specification scope.
Insulating heating distribution systems can reduce avoidable heat loss and help lower long-term energy use and operating costs. Heat loss causes extra energy demand, which comes with unnecessary additional running costs for years. Investing in modern insulation materials also extends the system service life, reduces the risk of premature replacement and can lower the number of potential repairs.
Before you choose a material or thickness, gather the basics. This keeps decisions consistent and easier to justify later.
Capture these inputs:
This provides the minimum project data needed to assess insulation thickness more consistently and justify the specification later.
Insulation thickness is not one fixed number. It is typically selected based on:
If you want a structured starting point, the Thermaflex insulation calculator can help you define insulation thickness and estimate energy and financial impact for heating or cooling applications.
Use the output as a structured starting point, then confirm the assumptions against project requirements and record them in the design file.
For details, follow your local requirements and project standards.
Good insulation helps retain heat from the source to the point of use. A key material property is thermal conductivity, expressed as lambda (λ) in W/mK. Lower λ values indicate lower heat transfer through the insulation at the stated test conditions.
Because thermal conductivity can vary with temperature, insulation performance should always be assessed under relevant service conditions.
Good comparison habit: compare λ values at the same declared temperature basis shown in the relevant TDS documents.
Different parts of a system have different constraints. Selection usually depends on:
When selecting insulation materials, consider thermal performance, required thickness, moisture resistance, durability, installation constraints and expected service life. Each application has its own technical and practical requirements.
Lifecycle performance and environmental impact may also be relevant selection criteria, especially in projects with sustainability targets. Polyethylene (PE) foam insulation can support these requirements, depending on the application and specification context.
Thermaflex offers insulation tubes, sheets and prefabricated elements for heating and cooling applications, including solutions for challenging fittings and branches. If the project already requires a defined product type or format, continue to our insulation products and relevant TDS documents for specification details.
Even the right thickness can underperform if the installation is weak. Small gaps and poor joint finishing can increase heat loss and create maintenance issues. For consistent performance, installation should be carried out by trained professionals using a defined method.
A simple installation checklist can help teams maintain quality across the project:
If you need additional details and advice, please contact our experts.
Clear documentation supports tender alignment, installation quality control and future maintenance.
Include:
This improves traceability and reduces the gap between design intent and real operation.
Yes. They can be significant heat-loss points. Define a fitting approach in the specification so it is clear what is included and what is accessible for maintenance.
You typically need pipe size, medium temperature, ambient conditions, location type, and your objective: heat-loss control, condensation control or surface-temperature limits. In many markets, recognised calculation standards or guidance documents are used to determine insulation thickness. Always check the applicable method against local regulations and project requirements.
Lambda (λ) is thermal conductivity in W/mK. Lower values indicate lower heat transfer through the material at the stated conditions.
Yes. Thermal conductivity can vary with temperature, so thickness selection should reflect service conditions and the calculation method you are using.
Use a defined fitting method, such as agreed cut patterns, prefabricated elements or an approved site fabrication approach. Add a simple inspection step before ceilings are closed or boxing-in is installed.
At minimum: thickness schedule, product TDS links, the method and assumptions used to select thickness, and photos of key pipe runs and fittings before they are enclosed.
